ProSource

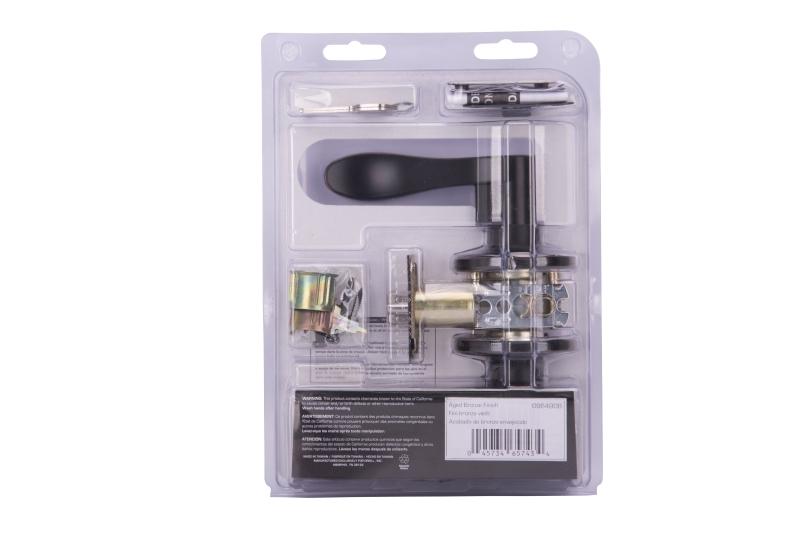

ProSource LYEX00V-PS Entry Lever, Zinc, Reversible Hand, 3 Grade
- Backset Size: 2-3/8 x 2-3/4 in
- Bolt Throw Size: 1/2 in
- Cross Bore Diameter: 2-1/8 in
- Cylinder Type: 5-Pin
- Dimensions: 478 x 380 x 283 mm
- Model #: LYEX00V-PS
- UPC #: 045734657434
- SKU: 0964908
Your shopping list will be used for pickup in-store
Product Details
The lever set are for keyed exterior doors. Both levers lock or unlock by key outside or turn button inside. It has a reversible handing and an adjustable six-way latch and radius round corner strike.Key Features
- KW1 keyway
- For residential use
- 1-3/8 to 1-3/4 in THK door
- Aged bronze finish
Item Specifications
| Backset Size | 2-3/8 x 2-3/4 in |
|---|---|
| Bolt Throw Size | 1/2 in |
| Cross Bore Diameter | 2-1/8 in |
| Cylinder Type | 5-Pin |
| Dimensions | 478 x 380 x 283 mm |
| Door Handing | Reversible |
| Edge Bore Diameter | 1 in |
| Faceplate Size | 1 x 2-1/4 in |
| Key Type | Keyed Alike |
| Keyway Type | KW1 |
| Latch Type | 6-Way |
|---|---|
| Material | Zinc |
| Number of Cylinders | 1 |
| Package Type | Visual Pack |
| Rose/Base Dimensions | 65.7 mm |
| Security Grade | 3 |
| Strike Size | 44.8 x 57 mm |
| Strike Type | Full Lip Round Corner |
| Throw Length | 1/2 in |
MORE DETAILS:
- Application: For keyed exterior doors
